WD-SRV-GP300-G4

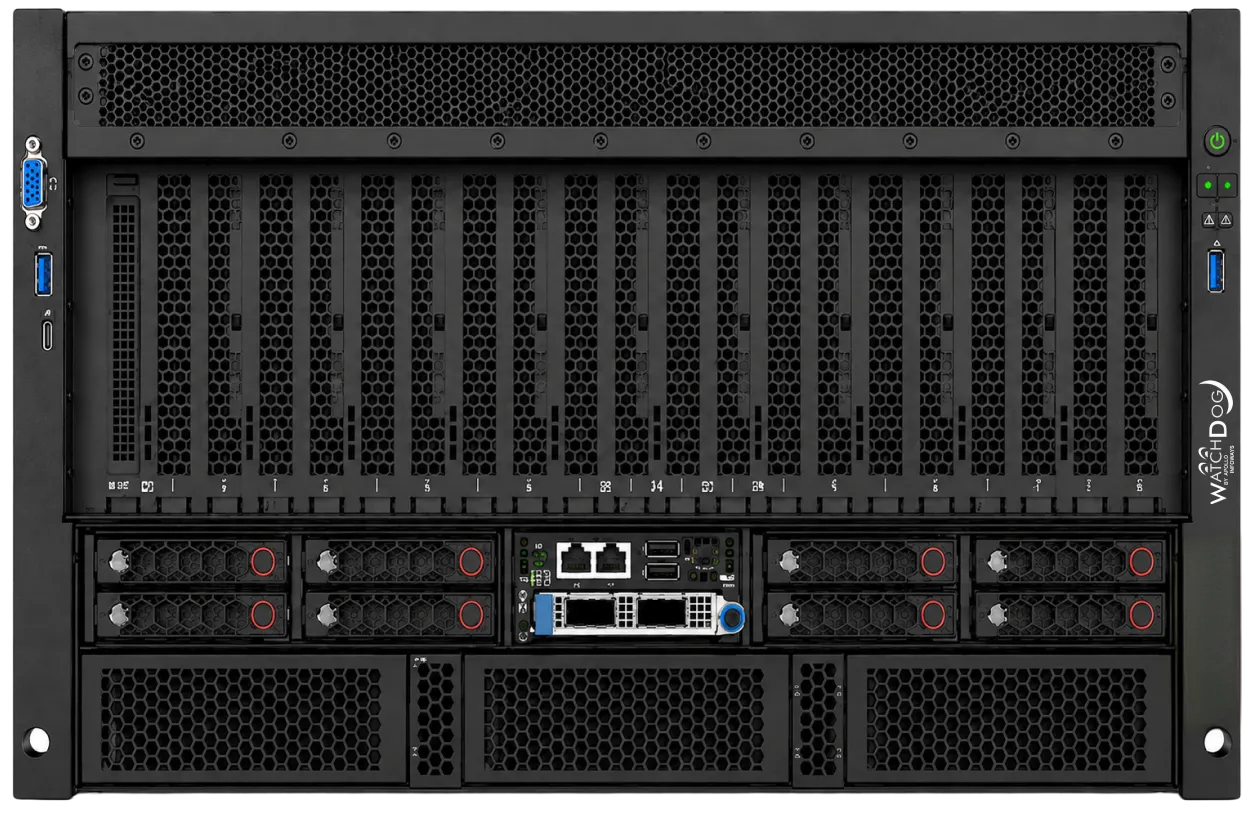

WATCHDOG AI RACK SERVER WD-SRV-GP300-G4

The Watchdog WD-SRV-GP300-G4 is a high-performance 6U dual-socket AI rack server designed to deliver exceptional computing power, scalability, and reliability for modern enterprise workloads. Featuring an advanced server architecture, it supports up to 8 high-performance GPUs within its compact 6U form factor, enabling accelerated processing for AI, deep learning, machine learning, and AIGC applications. Powered by the latest-generation server processors and supporting up to 12 storage drives, the WD-SRVGP300-G4 provides a flexible and efficient platform for data-intensive workloads.

ap-900

WD-SRV-GP300-G4

  • 2 Intel® 6th Gen Xeon® Scalable processors
  • Supports 8 FHFL DW PCIe GPUs
  • 6U Height
  • Supports up to 32 DDR5 memory slots

PRODUCT FEATURES

Diverse Computing Power for Future-Ready Intelligent Infrastructure

The Watchdog WD-SRV-GP300-G4 is designed to provide a flexible and scalable intelligent computing platform capable of supporting a wide range of AI, machine learning, inference, training, and high-performance computing (HPC) workloads. Its advanced heterogeneous computing architecture enables compatibility with multiple AI accelerator and GPU options, allowing organizations to select the optimal computing resources for their specific application requirements. The server supports high-speed networking and expansion technologies, enabling efficient data transfer, low- latency communication, and seamless cluster scalability for large-scale AI deployments. Its versatile architecture accommodates various deployment topologies, helping users optimize performance, resource utilization, and total cost of ownership (TCO). By combining powerful computing capabilities, flexible configuration options, and robust scalability, the WD-SRV-GP300-G4 provides a comprehensive foundation for next-generation intelligent computing environments.

Exceptional Hardware Configuration: Accelerating Next-Generation AI Workloads

The Watchdog WD-SRV-GP300-G4 is engineered to deliver outstanding computing performance for AI, machine learning, deep learning, and high-performance computing (HPC) environments. The platform supports the latest-generation high-core-count server processors, providing exceptional processing power for compute- intensive and highly parallel workloads. Designed for memory-intensive applications, the server supports high-speed DDR5 memory with extensive scalability, enabling rapid data access and improved performance for large-scale analytics, AI model training, and virtualization workloads. For storage flexibility, the WD-SRV-GP300-G4 supports multiple hot-swappable drive bays with compatibility for SATA, SAS, and NVMe storage technologies. This versatile storage architecture enables organizations to deploy high-capacity and high-performance storage configurations tailored to demanding AI and data-centric environments. The server also features advanced networking and expansion capabilities, including support for OCP-compliant network adapters, high-speed Ethernet connectivity, PCIe expansion slots, and GPU accelerator cards. These capabilities ensure efficient integration of compute, storage, and networking resources, delivering a balanced and scalable platform for AI training, inference, big data analytics, and HPC applications.

Hardware

Hardware Specifications

Parameters Details
CPU Supports 2 Intel® 6th Generation Xeon® Scalable Processors, TDP 350W
GPU Supports 8 FHFL DW PCIe interface GPUs
Memory Supports 32 x 6400MT/s DDR5 or 16 x 8000MT/s MCR DIMM memory
Storage controller Supports 1 high-performance storage controller Supports RAID 0/1/10/5/6/50/60
PCIe slots Pass-through: Supports up to 2 PCIe 5.0 available slots
CX8: Built-in 4*800G IB network ports
8*400G Ethernet network ports
Additionally supports 5 PCIe 5.0 available slots
Storage 16 x 2.5-inch SAS/SATA/NVMe, supporting 2 onboard M.2
12 x 2.5-inch SAS/SATA/NVMe, supporting 2 onboard M.2
8 x 2.5-inch SAS/SATA/NVMe, supporting 2 onboard M.2
Network Supports 1 OCP 3.0 and Multi-host network adapters
Fan Supports 13 x 8080 fans with N+1 redundancy
Expansion slots 4 PCIe standard slots (3 PCIe 5.0/ 1 PCIe 4.0),
2 onboard OCP 3.0 slots
1 dedicated Mezz slot
Up to 7 PCIe slots,
CXL2.0
Ports 5 × USB connectors
1 RJ45 HDM dedicated network connection
Supports 2 VGA interfaces
Supports 1 Type C Debug port dedicated management interface
Optional 1 management serial port*
GPU 4 single-slot GPU modules
Optical drive External optical disk drive, optional
Management Embedded BMC Standard License
Supports LCD touch-enabled intelligent management module
Supports 64M local video memory*
Optional U-Center data center management platform
Operating temperature -5ºC to 55ºC
(23°F to 131°F)
Standards CE, UL, IS-13252
Dimensions (H×W×D) 6U chassis (H×W×D)
263.7 × 447 × 880 mm
or (10.38 × 17.60 × 34.65 in)
Power supply 1+1 Redundancy power supply
Platinum 800W/1300W/1600W/2000W//2400W/2700W/3200W
Optional Titanium power supply
DC power supply
8 Hot swappable redundant fans
