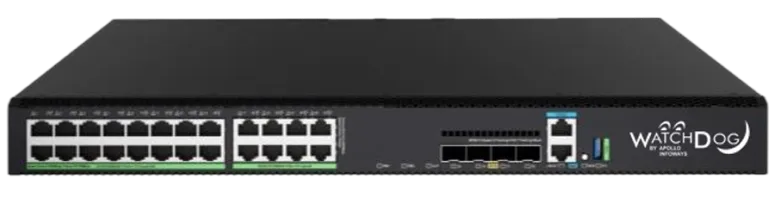

WD-16P8MP4T
- 16 x 10/100/1000Base-T ports (PoE++).
- 8 x 10M/100M/1G/2.5G/5G/10G Base-T ports (PoE++).
- 4 x 1G/10G/25GBase-X SFP28 ports.
- 1 expansion slot.
WD-32P16MP4T
- 32 x 10/100/1000Base-T ports (PoE++).
- 16 x 10M/100M/1G/2.5G/5G/10G Base-T ports (PoE++).
- 4 x 1G/10G/25GBase-X SFP28 ports.
- 1 expansion slot.
WD-24MP
- 24 x 100M/1G/2.5G/5G/10GBASE-T ports (PoE++).
- 1 expansion slot.

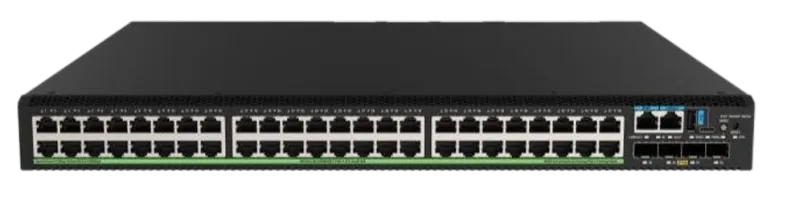

WD-48MP4T
- 48 x 100M/1G/2.5G/5G/10GBASE-TPoE++ ports.
- 4 x 25G SFP28 ports.
- 1 expansion slot.
- Without power supplies.

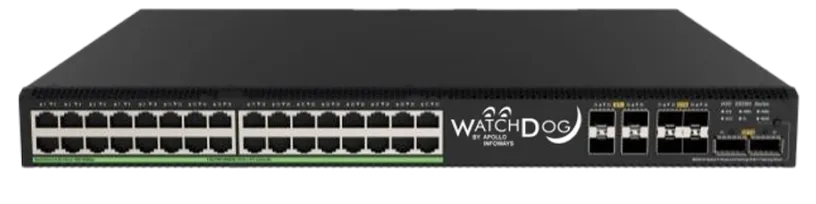

WD-32NP4X4T2H
- 32 x 100M/1G/2.5GBASE-TPoE++ ports.
- 4 x 1G/10GBase-X SFP Plus ports.
- 4 x 10G/25G SFP28 ports, 2 x 40G/100G QSFP28 ports.
- 1 expansion slot, without power supplies.

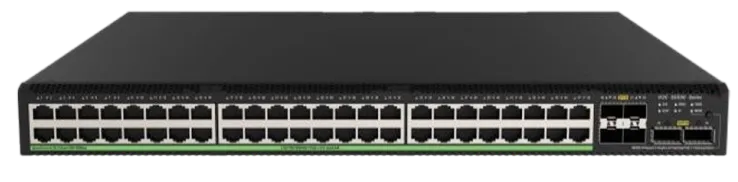

WD-48NP4T2H
- 48 x 100M/1G/2.5GBASE-TPoE++ ports.
- 4 x 10G/25G SFP28 ports.
- 2 x 40G/100G QSFP28 ports.
- 1 expansion slot, without power supplies.
Key Features
WatchDog Management Center (WD-NMC)
As the network scale increases, a large number of access devices are required at the network edge, which makes the management of these devices very cumbersome. The main purpose of WD-NMC is to solve the problem of centralized management of a large number of scattered network devices. It is designed to solve the switch-based operation and maintenance tasks of small enterprises. WD-NMC realizes unified operation, maintenance and management of the network by means of built-in equipment and graphical operation. WD-NMC simplifies the operation, maintenance and management of small and medium-sized campus networks: · Smart management: It mainly includes device role selection, FTP server configuration, global configuration and network management port configuration, etc. · Intelligent operation and maintenance: Mainly include group management, equipment or group upgrade backup, monitoring and equipment failure replacement, etc. · Visualization: Includes networking topology visualization and management, device list display, device ports display, etc. · Smart business: Mainly includes user management, etc. After network access users are created and successfully activated, these users can access the WD-NMC network through the port of one-click provisioning.
Multi-Service Integration
Based on WD5890 's Open Service Architecture (OAA), WD5890 Converged Hybrid Multigiga Switches can not only provide the functions of traditional switches, but also integrate security module cards including FW, IPS, and load balancing etc, making the WD5890 Converged Hybrid Multigiga Switches a converged multi-service bearing platform.
High-Performance IPv4/IPv6 Service Capability
WD5890 Converged Hybrid Multigiga Switches implement a hardware-based IPv4/IPv6 dual-stack platform, support multiple tunnel technologies, rich IPv4 and IPv6 Layer 3 routing protocols, multicast technologies and policy routing mechanisms, providing users with complete IPv4/IPv6 solution.
Software
SOFTWARE SPECIFICATIONS
VLAN
- Access/Trunk/Hybrid VLAN
- Port-based VLAN
- Support MAC-based VLAN
- IP subnet-based VLAN
- VLAN ID range 0 to 4095 (Total 4096, 0 and 4095 are reserved)
- Protocol-based VLAN
- IEEE 802.1P (CoS priority)
- Super VLAN
- Private VLAN
- Store-and-forward (Default)
- Voice VLAN
- QinQ, flexible QinQ
- VLAN Mapping
- QinQ (802.1Q-in-802.1Q)
- Static/Dynamic/Blackhole/Multiport unicast MAC
- MAC automatic learning and aging
- Port-based/VLAN-based MAC learning limit
- MAC filter
- Port isolation
- Port-based VLAN
- Protocol-based VLAN
- IEEE 802.3x flow control (full duplex)
- LLDP (Link Layer Discovery Protocol) and LLDP-MED
- Broadcast/multicast/unknown unicast storm control
- Jumbo frame
Ethernet Configuration
- Cross-device link aggregation
- Static aggregation
- Auto MDI/MDIX
- Dynamic aggregation
- LRM (Long Reach Multimode)
- Speed Auto/Manual
- Duplex Auto/Full/Half
Layer 2 Ring Network Protocol
- Loop detection (VLAN and VXLAN network)
- MVRP (Multiple VLAN Registration Protocol)
- Support RRPP
- Support port single-pass detection, Edge Port
- Support ERPS (G.8032) Ethernet ring network protection switching
- BPDU/root/loop/TC-BPDU/PVST BPDU/dispute loopback guard
- Role/TC-BPDU transmission restriction
- GVRP (Generic VLAN Registration Protocol)
- PVST (Per-VLAN Spanning Tree) compatible with PVST+/RPVST+
- Support STP/RSTP/MSTP
Virtual Switching System (VSS)
- Fast convergence within 50ms
- Supports local stacking and remote stacking
- Supports stacking via standard Ethernet interfaces
- Virtual Switching System (VSS)
- Support distributed device management, distributed link aggregation, distributed elastic routing
IP Services
- Static/Dynamic/Gratuitous/proxy ARP
- ARP snooping/fast-reply/direct route advertisement/ping
- ARP attack detection
- ARP source suppression
- GRE (Generic Routing Encapsulation)
- DNS (Domain Name System)
- DHCPv6 Server/relay agent/client/snooping/guard
- HTTP redirect
- GRE tunneling
- VXLAN tunneling
- VXLAN-DCI tunneling
- IPv4/IPv6 Fast Forwarding
- Ping, Tracert
- DHCP (Dynamic Host Configuration Protocol)
- UDP helper
- DHCP Server/relay agent/client/snooping DHCP Option 43, Option 82, and Option 184
- ND snooping/proxy/direct route advertisement/ping
- DDNS (Dynamic Domain Name System)
- mDNS (Multicast Domain Name System)
- IRDP (ICMP Router Discovery Protocol)
- ND (Neighbor Discovery)
- IPv4/IPv6 over IPv4 tunneling, and IPv4/IPv6 over IPv6 tunneling
IP Routing
- Support static routing
- Support RIPv1/v2, RIPng
- Support OSPFv1/v2, OSPFv3
- Support route COST setting, support inter-area route filtering
- Support BGP4, BGP4+ for IPv6
- Support IS-IS, IS-IS V6
- Support equal-cost routing, policy routing
- Support VRRP/VRRPv3
- Support OSPF multi-process
- MD5 encryption authentication,
STUB/NSSA area
IPv6
- Support 6to4 tunnel
- Support ISATAP tunnel
- Support GRE tunnel
- Support IPv4/IPv6 dual stack protocol
- IPv4 support over IPv6 tunnel
- Support ND (Neighbor Discovery)
- Support PMTU
- Support manual tunnel, automatic tunnel
- Support IPv6-Ping, IPv6-Tracert, IPv6-Telnet, IPv6-TFTP, IPv6-ICMP, IPv6-DN, IPv6-FTP, IPv6-NTP
Multicast
- MLDv1/MLDV2
- MLD proxying
- MLD Snooping
- MLD snooping proxying
- PIM-DM, PIM-SM, PIM-SSM, and Any-RP
- Multicast VLAN
- MVPN (Multicast VPN)
- Multicast policy
- Multicast QoS
- PIM snooping
- IGMPv1/IGMPv2/IGMPv3
- IGMP Snooping, IGMP proxying
- Support MSDP, MSDP for IPv6
- Support MBGP, MBGP for IPv6
- Multicast routing and forwarding
- IGMP snooping/proxying
- IGMP Filter and IGMP Fast leave
- IPv6 PIM-DM, PIM-SM, PIM-SSM, and Any-RP
- IPv6 PIM snooping
Safety Features
- Support RBAC (Role-based access control)
- Support user hierarchical management and password protection
- Support 802.1X authentication / centralized MAC address authentication
- Support Portal authentication
- Support Guest VLAN
- Support AAA (Authentication, Authorization, and Accounting)
- Support RADIUS authentication
- IPv6 RA Guard
- ARP attack protection
- uRPF to prevent IP source address spoofing and prevent viruses and attacks
- IP/Port/MAC binding function
- Control Plane Protection (CoPP), Wireless Intrusion Prevention System (WIPS)
- Attack detection and prevention TCP attack prevention
- IPSG (IP source guard)
- PKI (Public Key Infrastructure)
- BPDU guard, Root guard
- WDTACACS certification (compatible with TACACS+)
- MAC authentication
- Web authentication
- Triple authentication
- ND attack protection
- DHCP Snooping to prevent spoofed DHCP server
- Dynamic ARP inspection to prevent man-in-the-middle attacks and ARP denial of service
- MFF (MAC-forced forwarding)
- SAVI (Source Address Validation Improvement)
- FIPS (Federal Information Processing Standards)
- MACsec (Media Access Control Security) All ports AES256 MACsec
- Micro segmentation
- Hierarchical user management and password protection
- Basic and advanced ACLs for packet filtering
- OSPF, RIPv2 message plaintext and MD5 ciphertext authentication
- SSH1.x and SSH2.0 (Secure Shell)
- SSL (Secure Sockets Layer)
- HTTPS
- Port security
- EAD
- SAVI and SAVA to ensure the security of IPv6 environment
Mirroring
- Stream mirroring supported
- Support N:4 port mirroring
- Support ERSPAN
- Supports local and remote port mirroring
OpenFlow
- OpenFlow 1.3
- Group table
- Multiple tables flow
- Multiple controllers (EQUAL, master/backup)
MAC Address Table
- Support black hole MAC address
- Supports setting the maximum number of port MAC addresses to learn
ACL and QoS
- Support L2 (Layer 2) ~ L4 (Layer 4) packet filtering function provide based on source MAC address, destination MAC address, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, TCP/UDP port number, Traffic Classification for VLANs
- Support Time Range ACL
- Supports bidirectional ACL policies in inbound and outbound directions
- Supports issuing ACLs based on VLANs
- Supports limiting the rate at which the port receives packets and the rate at which it sends packets
- Diff-Serv QoS
- Support message redirection
- Support CAR (Committed Access Rate) function
- Support flexible queue scheduling algorithm, can be set based on port and queue at the same time, support SP, WFQ, SP+WFQ three modes
- Eight queues each interface
- Congestion avoidance, Tail-Drop, RED (Random Early Detection) and WRED (Weighted Random Early Detection)
- Traffic shaping
- Time ranges
- 802.1p, TOS, DSCP, and EXP priority mapping 802.1p and DSCP priority re-marking of packets
- Traffic classification based on source MAC, destination MAC, source IP, destination IP, port, protocol, and VLAN
Port Characteristics
- Storm suppression based on port rate percentage
- PPS-based storm suppression
- bps-based storm suppression
- IEEE802.3x flow control (full duplex)
VxLAN
- VXLAN M-LAG
- VXLAN-DCI
- VXLAN, VTEP
- Centralized VXLAN gateway
- Support VxLAN routing
- Support VxLAN Layer 2 and Layer 3 gateways
- Distributed VXLAN gateway
- OVSDB (Open v Switch Database)
- MP-BGP EVPN control plane
- EVPN VXLAN
- EVPN M-LAG
Network Management
- NQA (Network quality analyzer)
- Performance management through gRPC or NETCONF
- NTP (Network Time Protocol)
- Support hot patch function, online patch upgrade
- Support XModem /FTP/TFTP loading and upgrading
- Support command line interface (CLI), Telnet, Console port for configuration
- Support netcool network management platform
- Support SNMPv1/v2/v3, RMON (Remote Monitoring)
- Flow mirroring
- N:4 port mirroring
- Support WD-NMC Network management center
- Support Syslog, system log, hierarchical alarm, debug information output
- Support power alarm function, fan, temperature alarm
- Support Ping, Tracert
- Support VCT (Virtual Cable Test) cable detection function
- Support DLDP (Device Link Detection Protocol) unidirectional link detection protocol
- BFD support for VRRP/IS-IS/BGP/RIP/OSPF/Static Routing
- Support secure boot
- Port mirroring SPAN (Switch Port Analyzer), RSPAN (Remote SPAN), local and remote port mirroring, sFlow
- NETCONF/YANG (XML-based network management protocol)
- Support Python script management operation and maintenance
- Support Loopback-detection port loopback detection
- Support NetStream function, traffic analysis sampling ratio 1:1
- Support built-in Web GUI
MPLS
- Static LSP (label switched path)
- LDP (Label Distribution Protocol)
- IPv6 LDP
- Tunnel policies
- VRF (Virtual Routing and Forwarding)
- Support MPLS MCE
- MPLS support L3VPN
- MPLS support L2VPN
- MPLS support SR
- MPLS Ping/Tracert
- MCE (Multi-VPN Instance Customer Edge)
- IPv6 MCE
- MPLS OAM
Energy Saving
- Port automatic power down function
- Support EEE (802.3az) energy saving standard
- Port timing down function (Schedule job)
Hardware
Hardware Specifications
WD-16P8MP4T / WD-32P16MP4T
| Models | WD-16P8MP4T | WD-32P16MP4T |
|---|---|---|
| Port switching capacity | 792 Gbps | 984 Gbps |
| Packet forwarding capacity | 660 Mpps | 660 Mpps |
| Switching capacity | 2.4 Tbps | 2.4 Tbps |
| CPU | Dual Core, 1.2GHz | Dual Core, 1.2GHz |
| SDRAM | 2 GB | 2 GB |
| Flash | 8 GB | 8 GB |
| Packet buffer | 16 MB | 16 MB |
| Dimensions (W×D×H) | 440 × 400 × 44 mm | 440 × 400 × 44 mm |
| Weight | ≤ 6.8 kg | ≤ 7 kg |
| Console port | 1 RJ45 | 1 RJ45 |
| Management Ethernet port | 10/100/1000Base-T electrical port: 1 (Out of Band) | 10/100/1000Base-T electrical port: 1 (Out of Band) |
| USB port | 1 | 1 |
| 10/100/1000BASE-T port (PoE++) | 16 | 32 |
| 10M/100M/1G/2.5G/5G/10G Base-T ports (PoE++) | 8 | 16 |
| 10G/25GBase-X SFP28 | 4 | 4 |
| Latency (64byte LIFO) | GE: <5µs, 10G/25G: <3µs, 40G: <1.2µs | GE: <5µs, 10G/25G: <3µs, 40G: <1.2µs |
| Expansion card slot | 1 | 1 |
| PoE | PoE++ support | PoE++ support |
| Input voltage | AC: Rated voltage range: 100 to 240V AC: 50/60Hz | AC: Rated voltage range: 100 to 240V AC: 50/60Hz |
| Power supply slots | 1+1 hot swappable | 1+1 hot swappable |
| Fan trays | Hot swappable | Hot swappable |
| Operating temperature | -5ºC to 55ºC (23ºF to 131ºF) From -60m to 5000m altitude: From 0m, the maximum operating temperature reduces by 0.33ºC for every time 100 the altitude increases by 100m. | -5ºC to 55ºC (23ºF to 131ºF) From -60m to 5000m altitude: From 0m, the maximum operating temperature reduces by 0.33ºC for every time 100 the altitude increases by 100m. |
| Storage temperature | -40ºC to 85ºC (-40ºF to 185ºF) | -40ºC to 85ºC (-40ºF to 185ºF) |
| Relative operating humidity | 5 % to 95 % (non-condensing) | 5 % to 95 % (non-condensing) |
WD-24MP / WD-48MP4T
| Models | WD-24MP | WD-48MP4T |
|---|---|---|
| Port switching capacity | 880 Gbps | 1360 Gbps |
| Packet forwarding capacity | 660 Mpps | 1012 Mpps |
| Switching capacity | 2.4 Tbps | 2.4 Tbps |
| CPU | Dual Core, 1.2G | Dual Core, 1.2G |
| SDRAM | 2 GB | 2 GB |
| Flash | 8 GB | 8 GB |
| Packet buffer | 16 MB | 16 MB |
| Dimensions (W×D×H) | 440 × 400 × 44 mm | 440 × 400 × 44 mm |
| Weight | ≤ 7.5kg | ≤ 8.2kg |
| Console port | 1 RJ45 and 1 Type-C | 1 RJ45 and 1 Type-C |
| Management Ethernet port | 10/100/1000Base-T electrical port: 1 (Out of Band) | 10/100/1000Base-T electrical port: 1 (Out of Band) |
| USB port | 1 | 1 |
| 10M/100M/1G/2.5G/5G/10G Base-T ports (PoE++) | 24 | 48 |
| 10G/25GBase-X SFP28 | - | 4 |
| Latency (64byte LIFO) | GE: <5µs 10G/25G: <3µs 40G/100G: <1.2µs | GE: <5µs 10G/25G: <3µs 40G: <1.2µs |
| Expansion card slot | 1 | 1 |
| PoE | PoE++ support | PoE++ support |
| Power supply slots | 1+1 hot swappable | 1+1 hot swappable |
| Fan trays | Hot swappable | Hot swappable |
| Operating temperature | -5ºC to 55ºC (23ºF to 113ºF) From -60m to 5000m altitude: From 0m, the maximum operating temperature reduces by 0.33ºC for every time 100 the altitude increases by 100m. | -5ºC to 55ºC (23ºF to 113ºF) From -60m to 5000m altitude: From 0m, the maximum operating temperature reduces by 0.33ºC for every time 100 the altitude increases by 100m. |
| Storage temperature | -40ºC to 85ºC (-40ºF to 185ºF) | -40ºC to 85ºC (-40ºF to 185ºF) |
| Relative operating humidity | 5 % to 95 % (non-condensing) | 5 % to 95 % (non-condensing) |
WD-32NP4X4T2H / WD-48NP4T2H
| Models | WD-32NP4X4T2H | WD-48NP4T2H |
|---|---|---|
| Port switching capacity | 800 Gbps | 800 Gbps |
| Packet forwarding capacity | 600 Mpps | 600 Mpps |
| Switching capacity | 2.4Tbps | 2.4Tbps |
| CPU | Dual Core, 1.2GHz | Dual Core, 1.2GHz |
| SDRAM | 2 GB | 2 GB |
| Flash | 8 GB | 8 GB |
| Packet buffer | 16 MB | 16 MB |
| Dimensions (W×D×H) | 440 × 400 × 44 mm | 440 × 400 × 44 mm |
| Weight | ≤ 7.6 kg | ≤ 7.8 kg |
| Console port | 1 RJ45 and 1 Type-C | 1 RJ45 and 1 Type-C |
| Management Ethernet port | 10/100/1000Base-T electrical port: 1 (Out of Band) | 10/100/1000Base-T electrical port: 1 (Out of Band) |
| USB port | 1 | 1 |
| 10M/100M/1G/2.5G Base-T ports (PoE++) | 32 | 48 |
| 1G/10GBase-X SFP+ | 4 | - |
| 10G/25GBase-X SFP28 | 4 | 4 |
| 100G QSFP28 | 2 | 2 |
| Latency (64byte LIFO) | GE: <5µs 10G/25G: <3µs 40G/100G: <1.2µs | GE: <5µs 10G/25G: <3µs 40G/100G: <1.2µs |
| Expansion card slot | 1 | 1 |
| PoE | PoE++ support | PoE++ support |
| Input voltage | AC: Rated voltage range: 100 to 240V AC: 50/60Hz | AC: Rated voltage range: 100 to 240V AC: 50/60Hz |
| Power supply slots | 1+1 hot swappable | 1+1 hot swappable |
| Fan trays | Hot swappable | Hot swappable |
| Operating temperature | -5ºC to 55ºC (23ºF to 131ºF) From -60m to 5000m altitude: From 0m, the maximum operating temperature reduce by 0.33ºC for every time 100 the altitude increases by 100m. | -5ºC to 55ºC (23ºF to 131ºF) From -60m to 5000m altitude: From 0m, the maximum operating temperature reduce by 0.33ºC for every time 100 the altitude increases by 100m. |
| Storage temperature | -40ºC to 85ºC (-40ºF to 185ºF) | -40ºC to 85ºC (-40ºF to 185ºF) |
| Relative operating humidity | 5 % to 95 % (non-condensing) | 5 % to 95 % (non-condensing) |
